The Spring Energized Seal-The Ultimate All-Rounder in Sealing Technology
Release Date：2026-06-30 View count：52
Among the vast family of sealing components,O-rings, lip seals, gaskets,each has its strengths. But when it comes to true versatility-surviving extreme cold and scorching heat, resisting aggressive chemicals and ultra-high pressures, and maintaining zero leakage even under high-speed motion,the spring-energized seal (also known as a spring‑energized PTFE seal or Variseal®‑type seal) stands out as the undisputed all-round champion.
How it works?

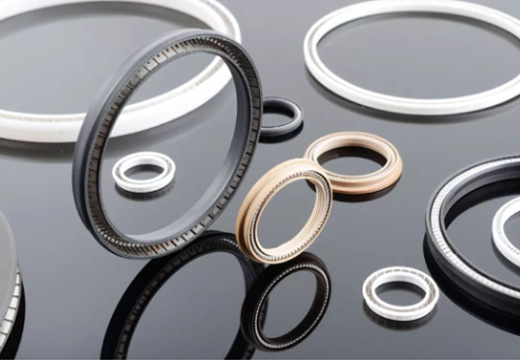

The spring energized seal appears simple in construction. It consists of two elements: a high‑performance polymer jacket (usually PTFE-based) and a corrosion-resistant metal spring (stainless steel or nickel alloy) housed inside.
When installed in the gland, the spring is compressed and exerts a constant outward force, pressing the sealing lip firmly against the mating surface. This is the essence of “energizing” – the spring permanently delivers a pre‑load that ensures intimate contact. Even if the lip wears slightly over time, the spring automatically compensates, maintaining a leak‑tight seal throughout the service life.
Moreover, the system pressure actually assists the spring – the higher the pressure, the tighter the lip seals against the groove, thanks to the pressure‑assist effect. As a result, from vacuum to ultra‑high pressure, the spring‑energized seal performs flawlessly.
Six Key Advantages That Make It the “All-Rounder”
1.Extreme Temperature Range, from -196℃ to 300℃
2.Ultra‑High Pressure Capability-Steady as a Rock
3.Extremely Low Friction No Stick-Slip
4.Almost Universal Chemical Resistance
5.Infinite Shelf Life and Extended Service Life
6.Dry-Running Capability Self-Lubricating
Versatility in Motion-Fit for Any Movement
The “all‑round” nature extends to the types of motion it can handle:
Reciprocating – piston rods, cylinders
Rotary – shafts, swivel joints
Static – flanges, end caps
Combined – simultaneous linear and rotary motions
Different spring styles (V‑spring, helical, cantilever, canted coil, flat spring) are available to tailor performance to the specific movement.
Closing Thoughts
From -196 °C cryogenic cold to +300 °C heat, from vacuum to 100 MPa+ pressure, from aggressive chemicals to high-speed rotation- the spring-energized seal proves its title of “all-round champion” day in, day out.
If your equipment is struggling with sealing challenges that conventional solutions can’t solve, it might be time to call in the all-rounder. It could be the answer you’ve been looking for.
Ready to explore more? Contact our engineering team for application, dhksealing@gmail.com
specific advice or request our full technical catalogue.
